Home > Product > Freeze drying machine

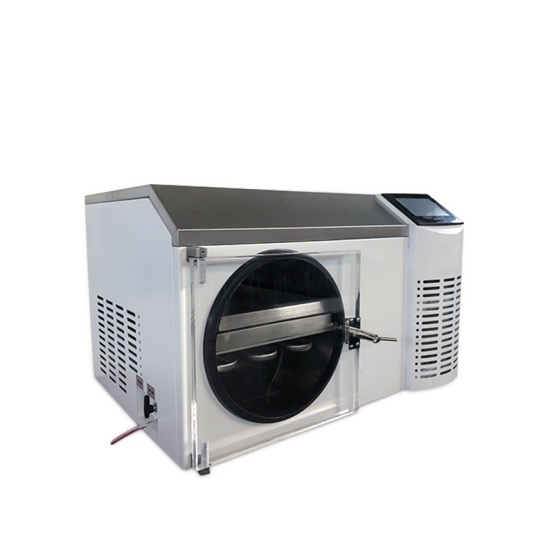

Electric heating table in situ freezing dryer QFN DGJ - 5 fe series

Device name:	Electric heating in situ freeze dryer
Equipment type:	qfn - dgj - 5fe
Dry area:	0.1 (support for customized)
Test machine:	Support test making experiment
Scope of application:	Vegetables, fruits, plants, flowers, condiments, aquatic products, biological products, medicines, beverages, specimens, etc.
Application scenario:	Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed?	National three year warranty
Telephone:	17317246351

Detail

Product features:
Pre freeze drying;
LCD display, PID control, with freeze-drying curve；
Square stainless steel material tray for easy operation and cleaning.
The valve can be configured to dry the inert gas at one time.
Vacuum seal, LCD panel temperature, cold trap curve;
PLC controller supports 20 programs, each program can be divided into 40 sections.
The parameters of freeze-drying process can be modified during operation and record the final drying curve.
Optional USB online function, export curve data to U disk.
It can be equipped with computer remote online function.
The manual cover device can be selected.
4 optional freeze-dried dry bottles;
Technical parameters:

Model	qfn - dgj - 5fe
type	Desktop general type
Freeze-dried area	Zero point one
Number of pallets	One
Tray temperature	-50℃ to 60℃
Tray size (mm)	280*400mm
cryo-temperature	Less than -50 C (no-load)
Water catching capacity of cold trap	2kg/24h
Tray liquid	1.5l
vacuum degree	< 10pa
Capping device	Manual cap (optional)
Cooling mode	Air cooling, good ventilation, room temperature less than 25 degrees C
Whole machine size (mm)	880660 550
Weight	180 pounds
Voltage	60hz 220 v 50 hz / 110v
Power (W)
Bottle branch of Xilin (for reference only)	22: 185 branch
	16: 384 branch
	14: 485 branch
	12: 650.
Heating mode	Electric heating
